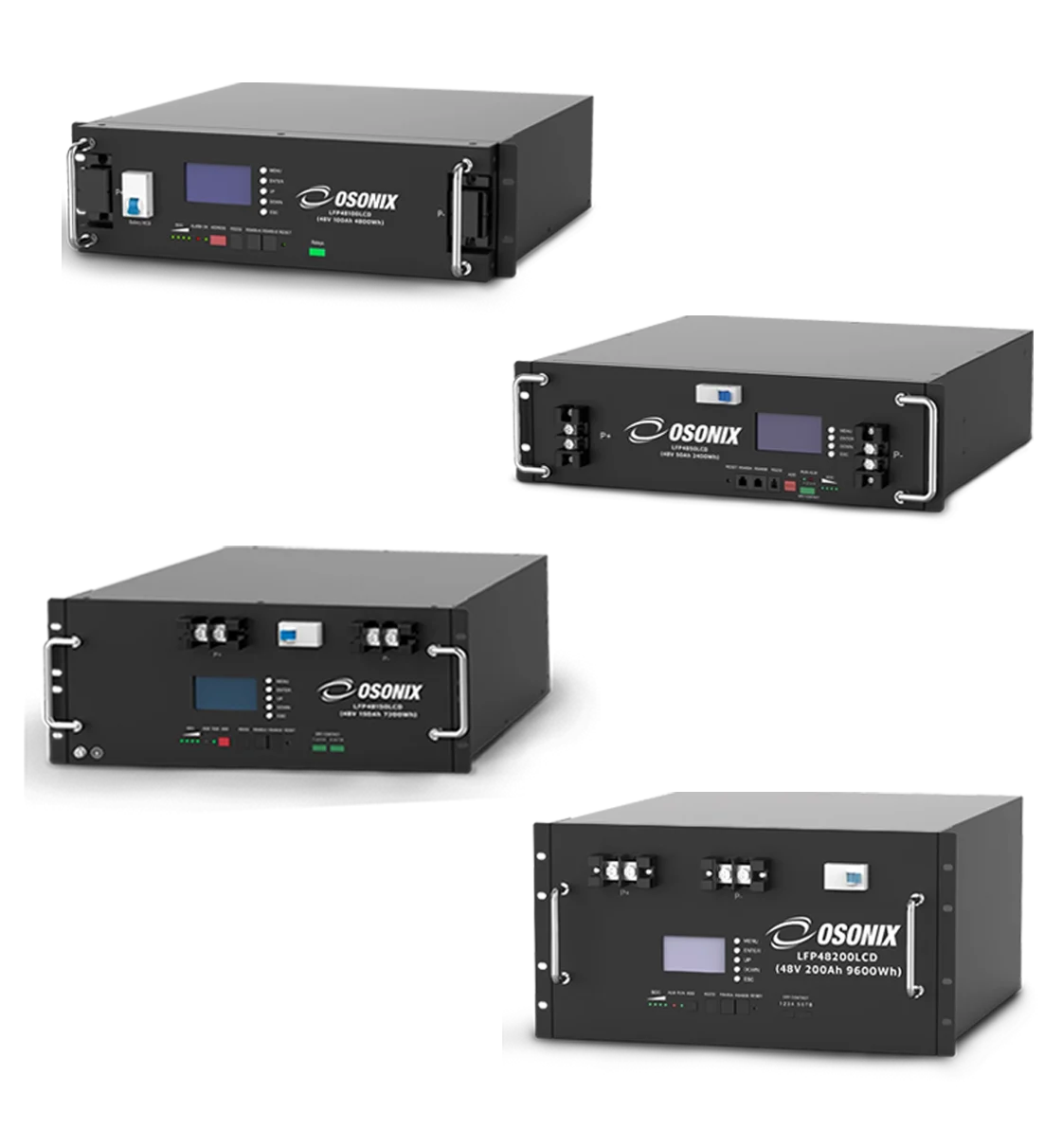

Batteries - LITHIUM
OSONIX battery packs with LCD display offer a high level of safety and reliability through the use of lithium iron phosphate (LiFePO4) cell technology, delivering 3 times more energy density, higher performance, and longer life cycles.
FEATURES
- Longer life cycles: >2500 cycles, ensuring an effective investment.
- Space-saving design, available in rack installations.
- Intelligent Battery Management System (BMS) for protection against overcharge, over-discharge, overcurrent, etc.
- Energy retention of up to 6 months, thanks to an extremely low self-discharge rate.
- Time savings and increased productivity with shorter recharge times.
- Provides the same amount of energy as lead-acid batteries, but in a smaller and lighter size.
Applications:
Data Centers
Renewable Energy
Telecommunications
Transportation
Equivalency Table
| BRANDS | OSONIX LFP4850LCD 48V 50Ah |

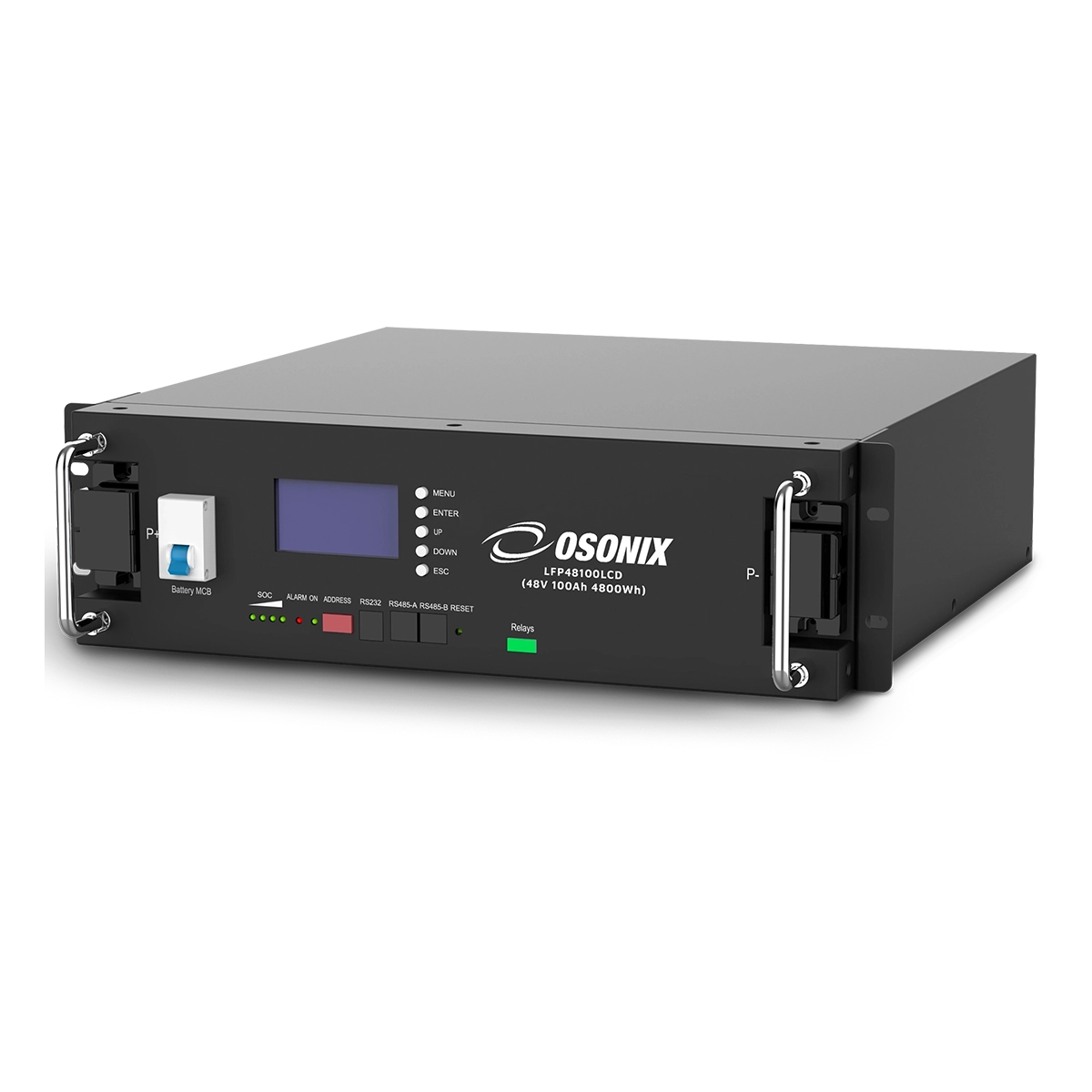

OSONIX LFP48100LCD 48V 100Ah |
OSONIX LFP48150LCD 48V 150Ah |
|---|---|---|---|
| RITAR | R-LFP48V50Ah | R-LFP48V100Ah | R-LFP48V150Ah |
| YOUTH POWER | YP-4850-2U | YP-48100-5U | YP-48150-5U |
| VISION | V-LFP48V50Ah | V-LFP48V100Ah | X |
| LEOCH | LFeLi-4850CB | LFeLi-48100CB | LFeLi-48150TB |
General Specifications / Download Brochure
|
Model OSONIX |
Voltage (V) | Capacity | Dimension | Weight | Terminal | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Ampere Hour (Ah) 10hr 1.80V/cell |
Watts (W) 15min 1.67V/cell |
Length | Width | Height |
Total Height |
(Kg) | (Lb) | |||||||
| mm | in | mm | in | mm | in | |||||||||

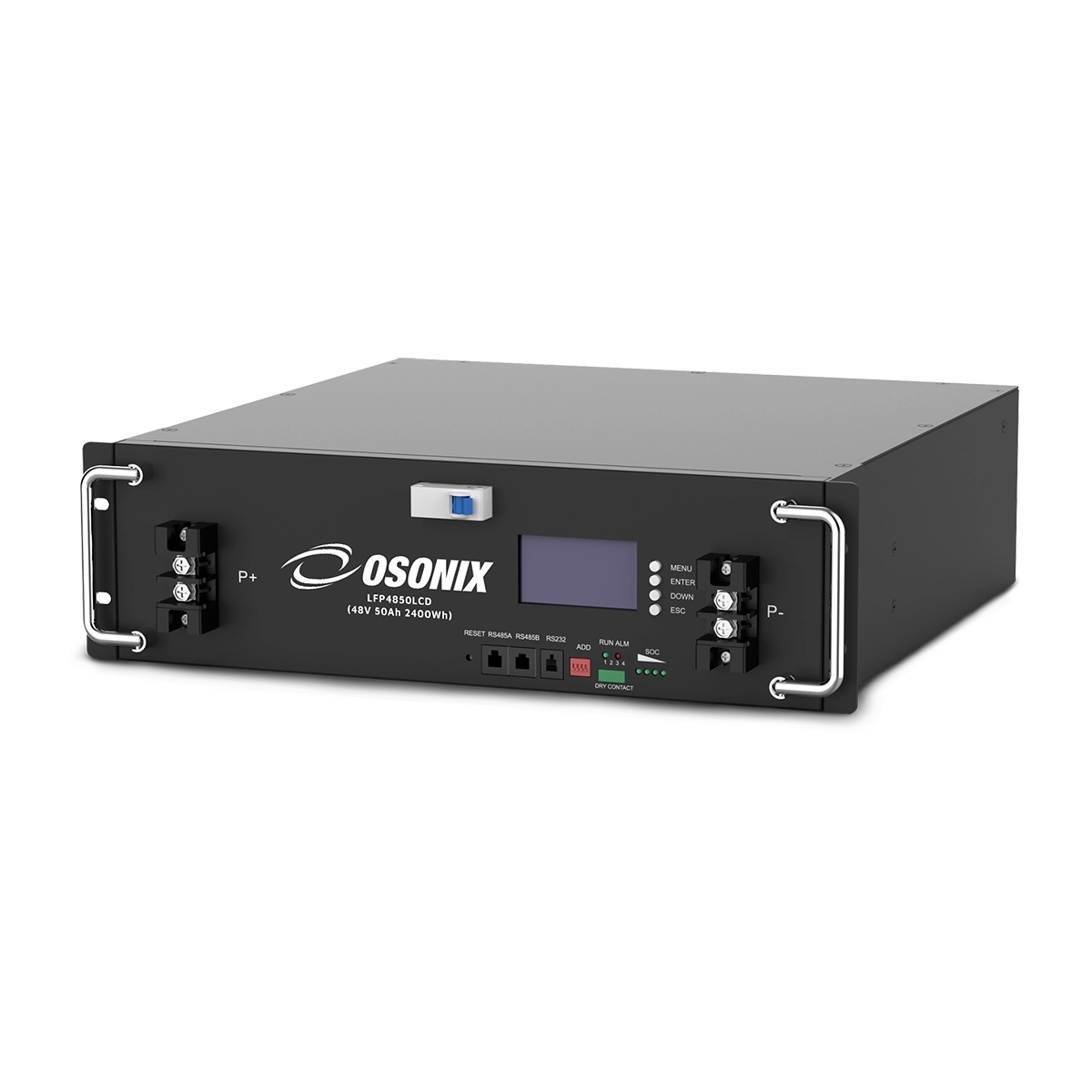

| 48 | 50 | 2400 |
442 |
17.4 |
442 |
17.4 |
132 |
5.19 |
3U |
27 |
59.52 |
M6 | ||
| 48 | 100 | 4800 |
442 |
17.4 |
450 |
17.71 |
132 |
5.19 |
3U |
41 |
90.38 |
M6 | ||

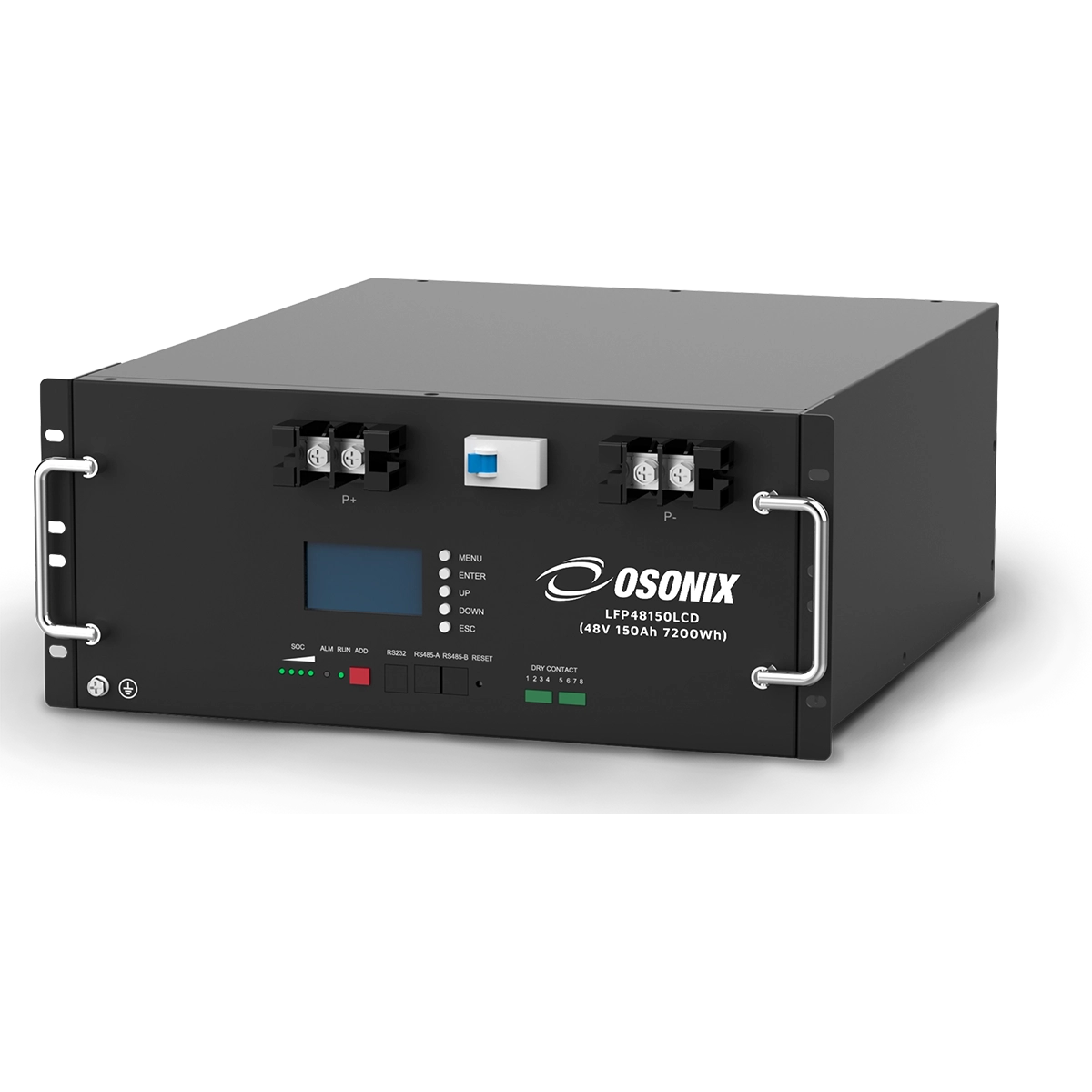

| 48 | 150 | 7200 |
442 |
17.4 |
520 |
20.47 |
198 |
7.79 |
4.5U |
65 |
143.3 |
M6 | ||

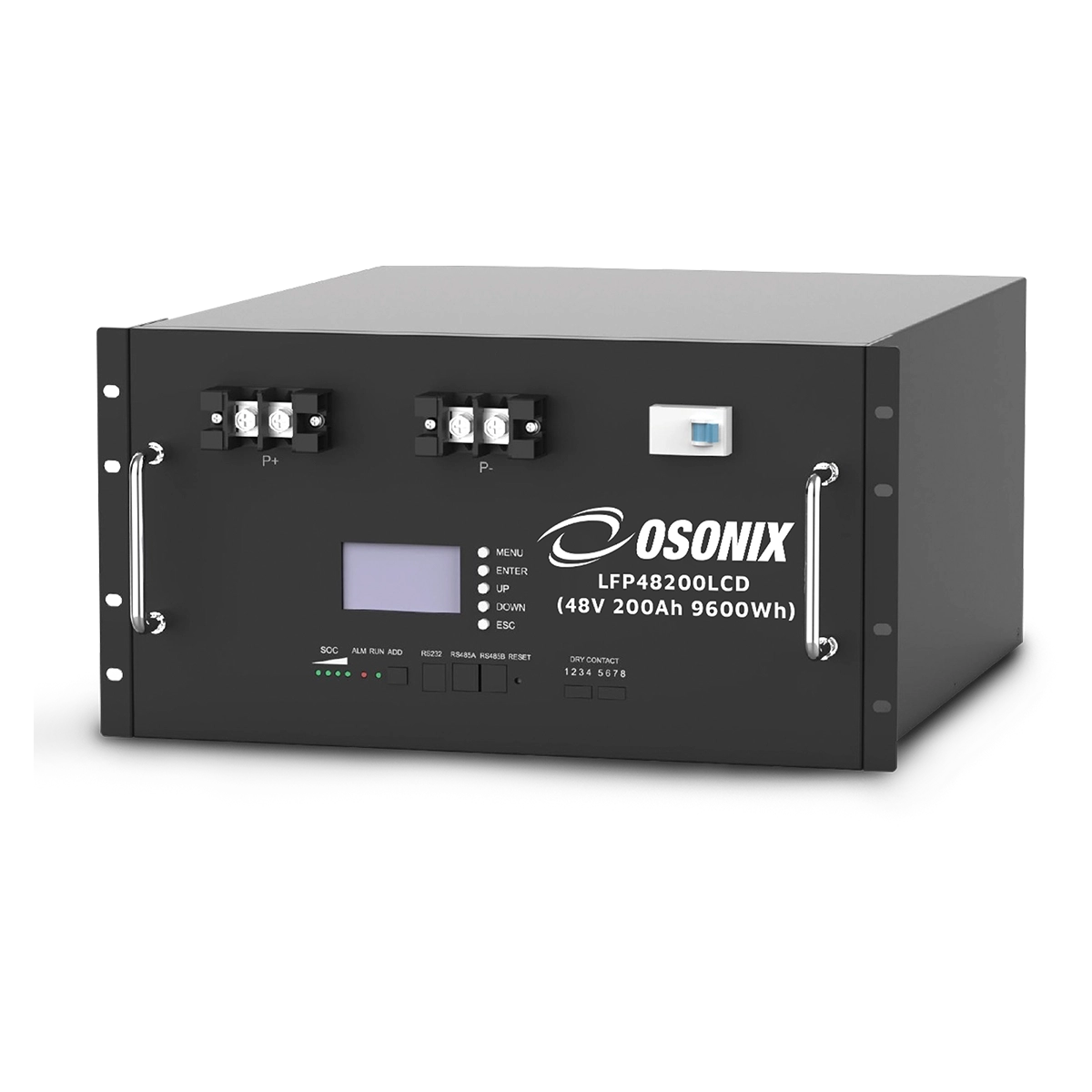

| 48 | 200 | 9600 |
442 |
17.40 |
520 |
20.47 |
244 |
9.60 |
5.5U |
79.3 |
174.82 |
M6 | ||
Our Certifications
UL Compliance
European Conformity
International Electrotechnical Commission
Integrated Management Systems
Environmental Management System
